NOWOŚĆ w ofercie BEIKS

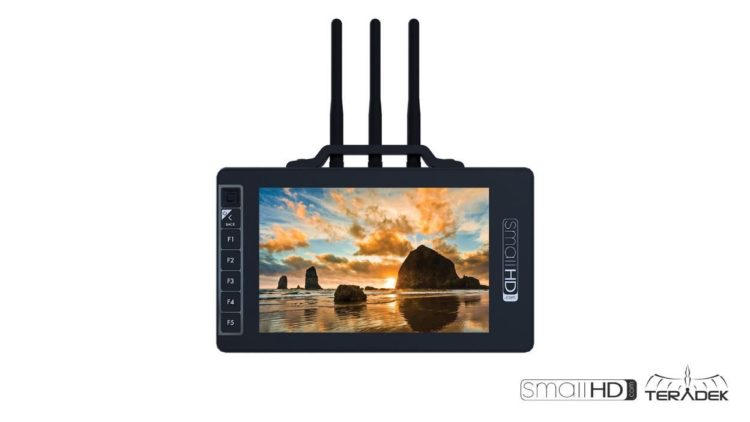

Bezprzewodowy monitor podglądowy od Firm SmallHD i Teradek
Firma SmallHD prezentuje nowy 7-calowy monitor SmallHD 703 BOLT Full HD z wbudowanym bezprzewodowym odbiornikiem HD. Monitor jest kompatybilny z przekaźnikami Teradek Bolt 500, 1000 oraz 3000.
SmallHD i Teradek połączyły siły, aby stworzyć bezprzewodowe urządzenie monitorujące, które jest łatwe do zauważenia, łatwe do zasilania i łatwe do trzymania.
Wyposażony w wbudowany odbiornik bezprzewodowy i najnowocześniejsze narzędzia programowe, takie jak LUT 3D w czasie rzeczywistym, zestaw 703 Bolt to najlepszy zestaw dla każdego reżysera.
Dzięki technologii bezprzewodowej Teradek, SmallHD 703 BOLT można z łatwością wykorzystać jako urządzenie wykorzystywane do regulacji ostrości.
SmallHD 703 BOLD umożliwia przesyłanie sygnału do innych monitorów za pośrednictwem kabla SDI.
Ogólna specyfikacja
|
Panel Type |
IPS LCD |
|
Resolution |
1920 x 1080 |
|
Pixel Density (PPI) |
323 ppi |
|
Aspect Ratio |
16:9 |
|
Active Area |
7.02 |
|
Brightness |
3000 |
|
Contrast |
1150:1 |
|
Color Gamut |
70% NTSC |
|
Color Depth |
10-bit |
|
Viewing Angle |
178 Degrees (CR<10) |
|
Backlight Type |
White LED |
Viewfinder (EVF)
|
Variable Field of View |
range |
Input Signal Types/Formats
|
3G-SDI |
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 |
|
HD-SDI |
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
|
SD-SDI |
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
|
Audio |
SDI – Monitor through Headphone Jack – Metering up to 8 channels |
Output Signal Types/Formats
|
3G-SDI |
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 |
|
HD-SDI |
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
|
SD-SDI |
YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
|
Audio |
SDI – Incoming Audio Stream is sent downstream via SDI connection |
Wireless
|
SDI Ancillary Data |
Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087 |
|
Color Sampling |
For SDI: YCbCr 4:2:2, 10-bit |
|
Supported Resolutions |
1080p60/59.94/50/30/29.97/25/24/23.98 1080psf30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 480i(NTSC)/576i(PAL) |
|
Video Compression |
Visually lossless |
|
Audio Compression |
48KhZ 24-bit PCM |
|
Switches |
On/Off |
|
Wireless Network |
5GHz (20&40Mhz), DFS Frequencies Available |
|
RF Channel Selection |
Auto only (NOT configurable) |
|
Encryption |
AES-128 |
|
RF Power |
15dBm EIRP |
|
Range |
Up to 300ft line of sight |
|
Noise Rejection |
Can coexist with WiFi and 5GHz cordless phones |
Connector Type
|
SDI |
2x 3g Input, 1x 3g Output |
|
Audio |
1x ⅛” Headphone Jack |
|
Power In |
1x Locking LEMO 2-pin Connectors Power Input |
|
USB |
1x Proprietary Locking LEMO 5-pin Connectors Power Input |
Controls
|
Primary Control Interface |
Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons |
Data I/O
|
Storage |
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving. |
|
USB |
USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving. |
Power
|
Connector Type |
1x Locking LEMO 2-pin Connectors Power Input |
|
Voltage |
With DV Battery Plate: 6.0 – 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 – 34V 14.4V Nominal With Lemo Input: 12 – 34V Max |
|
Power Consumption |
16.7W Max Brightness (3K+ nits) w/ Wireless OFF + SDI Video Signal, 7.4W Studio Mode (200 nits) w/Wireless OFF + SDI Video Signal | 23.3W Max Brightness (3K+nits) w/ Wireless ON + Wireless Video Signal/13.8W Studio Mode (200 nits) w/ Wireless ON + Wireless Video Signal |
|
Recommended Power Supply |
Included: LEMO to D-Tap Cable |
|
Overload Protection |
Yes |
Environmental
|
Compliance |
FCC, IC, CE, RoHS |
|
Operating Temperature |
0 – 100 degrees F |
|
Storage Temperature |
-4 – 120 degrees F |
|
Screen Protection |
AR Coated Gorilla Glass Optical Bonding on Panel |
|
Width |
1.21″ (3.07cm) |
|
Depth/Length |
8.4″ (21.34cm) |
|
Weight (Item Only without battery) |
32oz (907.18g) |
|
Weight (Packaged) |
44.2oz (1253.05g) |
|
Mount Points |
1x ¼”-20 Thread on left and right side of Monitor, 7x ¼”-20 Thread on Bottom of Monitor, 7x ¼”-20 Thread on Top of Monitor |
|
Note: |
5-inches high without antennas, 9.0 with antennas |
Software
|
Pixel Zoom (type) |
2x & 4x Zoom with smooth pan via joystick |
|
Frame Guides |
Preset Aspect Ratios & Customizable |
|
DSLR Scale |
Canon 5DMkii & Canon 7D |
|
Custom Scale |
Underscan Only |
|
Anamorphic De-Squeeze |
1.33x, 1.5x, 1.66x, 2.0x |
|
Image Rotate(Manual/Automatic) |
Automatic or Manual Control |
|
Image Flip (Manual/Automatic) |
Automatic or Manual Control |
|
Focus Assist (Colors) |
User Adjustable Color Style and Intensity |
|
Peaking |
User Adjustable Intensity |
|
False Color |
Spectrum, Arri Style and Fully User Customizable |
|
Zebra |
Dual – User Configurable |
|
Waveform |
Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
|
Vectorscope |
Yes |
|
RGB Parade |
Fully User Customizable |
|
Histogram |
Luma & RGB Style |
|
Image Capture |
With Dedicated Button |
|
Custom LUTS |
Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
|
LUT Downstream |
Available on SDI Out. Applied on Output Preview Page. |
|
LUT Import |
Via SD Card or USB Storage Device |
|
Image Overlay |
Opacity Slider and Blink Setting |
|
Audio Meters |
Up to 8 channel |
Monitor dostępny w ofercie firmy BEIKS i na stronie internetowej
